Measuring in all positions

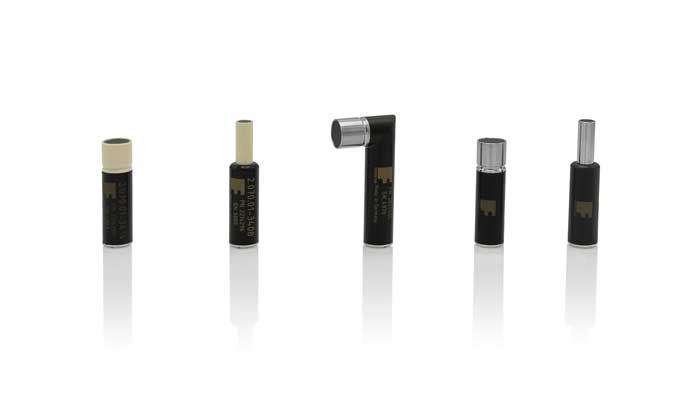

The probes are operated with the SIGMATEST 2.070 and form a complete system with the measuring unit. In terms of design, the probe elements can be installed in a wide variety of geometries. There are standard probes, angled probes, probes with a flexible arm or probes adapted to your individual requirements.
The probes are available in diameters of 5 mm, 8 mm or 14 mm. The 14 mm probe is easier to handle and provides a slightly more stable reading due to its larger surface area. The 8 mm probe is used for very narrow or small surfaces, for example on small coins.
Your advantages at a glance
- Probe elements in 5 mm, 8 mm or 14 mm diameter for a wide variety of applications
- The probes are available in various standard geometries, but can be fully customized
- A temperature sensor is built into each probe to measure the ambient temperature and to readjust the conductivity value if necessary
- Optional titanium version for minimum probe wear and even more stable measurement results
0,5 to 65 MS/m or 1 to 112 % IACS
60 / 120 / 240 / 480 / 960 kHz
Temperature range :
0 °C to +70 °C
